YOELEO

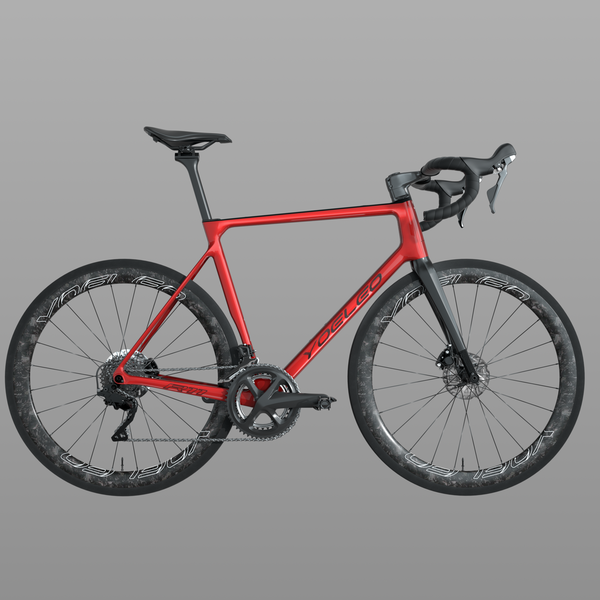

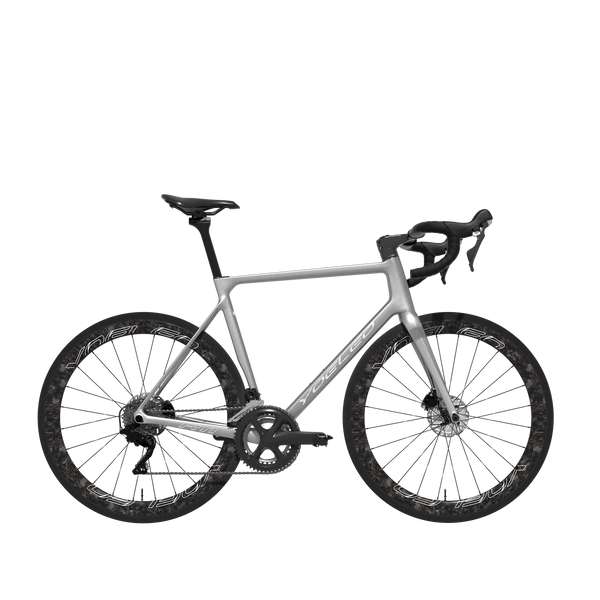

R11 Super Light Disc Road Bike - LTWOO ERX
Frame Sizes: 49cm,52cm,54cm,56cm,59cm
Color: Color: Arctic Ice / Ruby Red / Custom Painting
Frame
YOELEO R11 Super Light Frame
Material: Carbon Fiber T1000
Axle Dimension: 12 x 142 mm
Brake Mount: Flat Mount
Weight: 850g(54cm)
Seatpost Weight: 204g
Fork
YOELEO R11 Super Light Fork
Material: Carbon
Steerer: Taper 1-1/8” to 1-1/2”
Axle Dimension: 12 x 100 mm
Brake Mount: Flat Mount
Weight: 390g
Handlebar
YOELEO H9 Handlebar
Handlebar Width: 380mm/400mm/420mm/440mm
Handelbar Stem: 90mm/100mm/110mm/120mm
Weight: 325+/-15gram

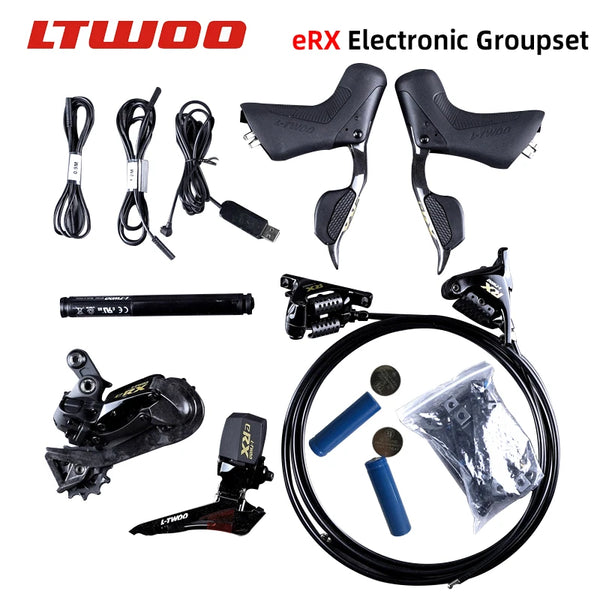

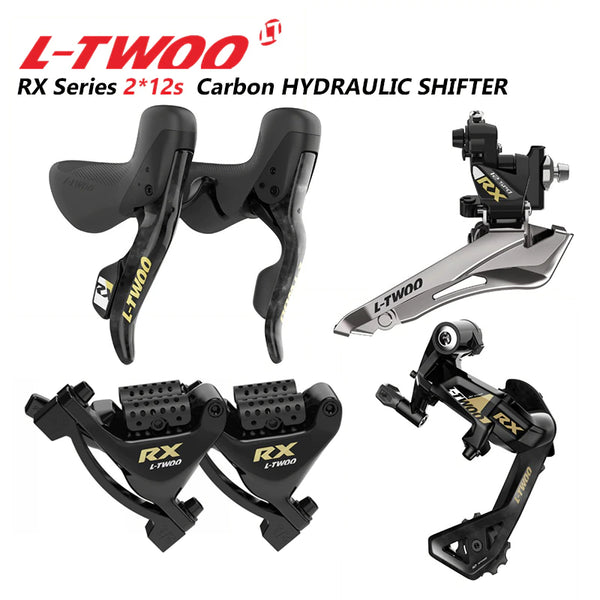

Groupset
Shifter LTWOO RX12-Disc R x 1 / L x 1, 12-Speed - ERX
Front Derailleur LTWOO RX-12, braze-on - ERX
Rear Derailleur LTWOO RX-12 - ERX
Crank PROWHEEL 53X39 12 speed 170mm
Cassette ZRACE 12s 11-34T
Chain Shimano 105 HG601, 12-speed
Brake LTWOO RX12 flat mount
Rotor Front 160mm/Rear 140mm
Wheelset
YOELEO SAT C50|50 DB PRO NXT SL2
Thru Axle: 12*100/12*142
Tires Continental GrandSport Race 700*28C
Ride like the wind with the Yoeleo R11! This frame is all about turning your hard work into fast rides. It's built to make sure every push on the pedals moves you forward, quickly. The R11 is super stiff, meaning you won't lose any power, and it handles like a dream. Whether you're climbing up a hill or speeding down one, you'll feel as sharp and confident as a pro racer. It's perfect for cyclists who want to get the most out of every ride, making sure you're always ahead of the pack.
The Ultimate Racing Rig
R11 delivers an extraordinary blend of responsiveness, efficiency, and agility. Whether you're attacking steep climbs or navigating technical descents, this frame is your ticket to pushing boundaries and redefining what's possible on two wheels.
YOELEO PROROUTE SYSTEM
The ProRoute Stem System introduces dual mounting solution for internal cable routing, catering to both the complete internal cable routing (Y-ICR) and the semi-internal cable routing (S-YICR) with sleek, removable spacers. This design ensures hassle-free installation.
AERODYNAMIC DESIGN FOR UNRIVALED SPEEDS
The Yoeleo R12 boasts a sleek, aerodynamic frame that minimizes drag and maximizes speed. Glide through the air and achieve your personal best on every ride with the R12's streamlined design.
ENHANCED CARBON FIBER LAY-UP FOR OPTIMAL STIFFNESS
ENHANCED CARBON FIBER LAY-UP FOR OPTIMAL STIFFNESS Experience the perfect balance of stiffness and lightweight performance with the R12's enhanced carbon fiber lay-up. This upgraded feature offers increased rigidity without adding extra weight, ensuring a responsive and nimble ride on every terrain.
THE BIGGER, THE BETTER
Want to spice up your workout with those uphill's or go for light gravel? Simply replace the current tire with 32c and chunkier all-terrain tire. Yoeleo R12 now supports wide road tires including 32mm of clearance for increased traction and comfort on the road
WHY YOU’LL LOVE IT ?
Yoeleo R11 DB, where every detail is honed for speed, efficiency, and victory on the road.
FRAME TECHNOLOGY
ProMoldCore Technology
The conventional manufacturing method that is still common practice with most companies today brings a lot of issues. Conventional methods causes undulations on the internals of the frame and even increases weight, making it difficult to achieve performance according to the specified carbon sheet specifications. Unlike traditional methods such as nylon bladders, ProMoldCore manufacturing technology allows for a more stable molding of the inside of the frame thanks to latex's flexibility and stretchability. We believe that inside out beauty applies for everything, especially for our framesets. By utilizing ProMoldCore technology, the outside and inside of a carbon road frame are of the same quality, resulting in an inner surface that is as smooth and wrinkle-free as the outer surface.
HANDLEBAR TECH
ProMoldCore and ProOne Technology
CRAFTED WITH PROMOLDCORE
In the same vein, the implementation of ProMoldCore in fabricating our handlebars has earned them renown for their stiffness. Experience hassle-free cable installation as the latex molds the bar's interior, ensuring a seamless cable routing installation with a sleek, smooth finish inside out.
ProOne Technology:
One-piece, no-bond manufacturing utilizes high-grade carbon fiber and YOELEO precision layup technique to eliminate the added weight and flex found in traditionally bonded bars.
Handlebar Options
Integrated or Stem+Bar
We offer H9 intergrated or
ST1+H11 stem with bar option for R11
R11 DB
Geometry
| 49 | 52 | 54 | 56 | 59 | ||
| Size Recommendation | Rider Height | 165cm-173cm | 170cm-178cm | 175cm-183cm | 180cm-188cm | 185cm-193cm |
| A | SEAT TUBE LENGTH(mm) | 455 | 475 | 495 | 515 | 535 |
| B | TOP TUBE LENGTH(mm) | 520 | 535 | 545 | 560 | 575 |
| C | REACH(mm) | 372 | 384 | 385 | 394.5 | 398 |
| D | STACK(mm) | 514 | 523.5 | 541 | 557 | 582 |
| E | HEAD TUBE LENGTH(mm) | 110 | 120 | 136 | 155 | 175 |
| F | SEAT TUBE ANGLE | 74° | 74° | 73.5° | 73.5° | 73° |
| G | HEAD TUBE ANGLE | 72.5° | 72.5° | 73° | 73° | 73.5° |
| H | BOTTOM BRACKET DROP(mm) | 69 | 69 | 69 | 69 | 69 |
| I | CHAIN STAY LENGTH(mm) | 410 | 410 | 410 | 410 | 410 |
| J | FRONT CENTER(mm) | 565 | 579.5 | 580.2 | 594.9 | 600 |
| K | WHEELBASE(mm) | 965 | 975 | 975 | 990 | 995 |
| L | FORK RAKE(mm) | 45 | 45 | 45 | 45 | 45 |
| M | FORK LENGTH(mm) | 370 | 370 | 370 | 370 | 370 |
Be Yourself Project
Build your dream bike
Explore the magic of our gradation option that smoothly transitions between two color choices, creating a beautiful, gradual color fade on your frame.
Decals color options : Silver, White, Black.
Embrace simplicity with our single-color paint option. Make a statement with just one bold, vibrant color.
Decal color options : Silver, White, Black
Our Core Values
At the core of our company lie the values ofself-disciplineandfreedom, driving us forward and fueling our passion for cycling. We believe that cycling is more than just a sport; it's a way to push beyond our limits, discover our inner strength, and achieve greatness. Since the beginning, we've been committed to these values, delighting our customers with a variety of cycling disciplines designed with a fun and progressive lifestyle in mind.
Racing Teams
Meet Our Sponsored Racing Teams
It all started with an idea from three cyclists with a common concern about mental health. With the intention of making a difference from Montreal to Paris, they launched THE 4MIND PROJECT. The aim of this initiative was/is to promote mental health through group bike rides at companies and inspire their community by contributing to world-class cycling races. As our project grows and new partnerships are formed, we will always keep the same mission; however, we have/are developed/ing a multi-faceted platform that will not only take athletes to the next level in their cycling journey but also engage the broader community – all while bringing awareness to mental health.
Mentorise Cycling Team is a professional cycling team that offers riders the opportunity to be part of something bigger than themselves, with exceptional coaching and support to help them sharpen their skills and become better cyclists. The team's motto is "Men To Rise," which represents the battle cry for any cyclist who wants to work hard, persevere, and fight to make their highest dreams come true.
Levante Fuji Shizuoka is a community-based professional cycling team based in Shizuoka Prefecture. The team name is derived from the Italian word "Levante" meaning "east wind" and Mt. Fuji, a sacred mountain representing Japan. The team will compete in the Japan Cycle League (JCL) road race series in Japan, aiming to become one of the top professional teams in Japan.
Despite freedom and progress being our most highlighted core value, we also believe in camaraderie amongst rider. We strive to make the cycling community a better place by providing high quality cycling equipments with friendly prices so that everyone can embark on their cycling journet through humble steps, showing that cycling is accessible and is open for everyone, no matter where you're from. Aside from products, the people that we support are no less important, as we want to bring more people that share these values together and use the influence to bring a greater change.
R11 Gallery
Feel their happiness through these beautiful imagery
